TV Mounting Studio Irvine covers full-motion and corner TV mounts in Irvine homes — articulating arms for the open great rooms of newer villages where the TV is watched from the sofa and the kitchen island, corner placements in bedrooms and lofts, and arms anchored across two wood studs or a hidden backer on steel.
Bookings aren't open yet. Leave your name and number; your message is recorded, and you'll get one message when a local installer is available.
Illustration
Where an articulating arm earns its price
| Room | Why full-motion helps | Typical arm |
|---|---|---|

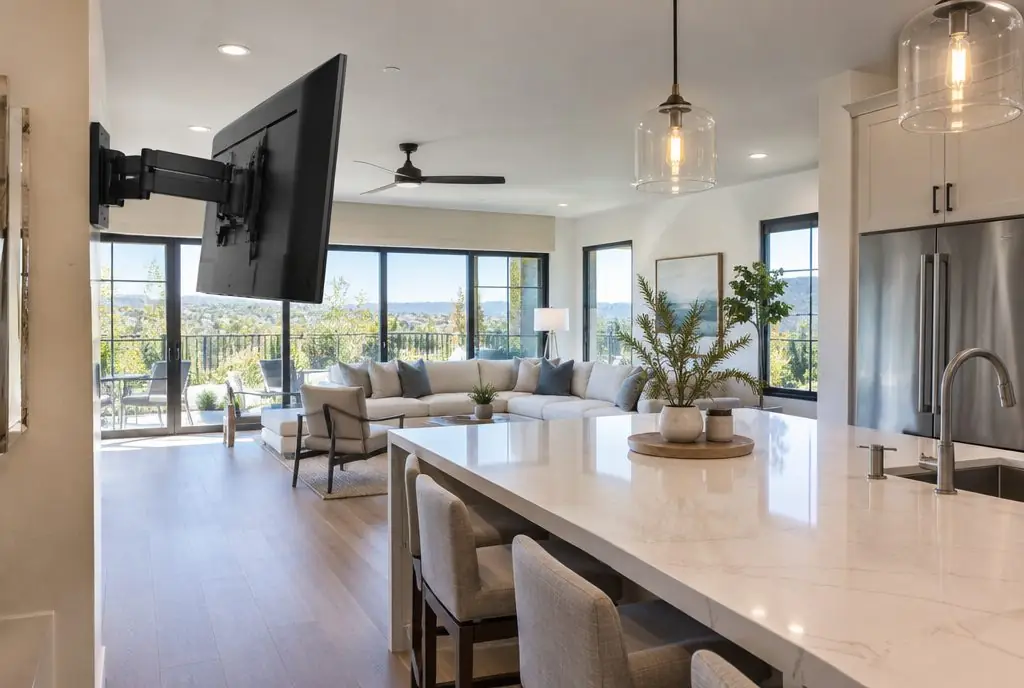

| Great room open to the kitchen | Turn the screen toward the island while cooking | Single or dual arm, 20–25 in extension |
| Corner of a bedroom or loft | Bring the screen out of the corner and face the bed | Corner-capable arm with long extension |
| Home office | Swing between desk and reading chair | Medium arm, 15–20 in |
| Wall with a deep media box | Clear a recessed box or thick trim | Any arm with enough folded depth |

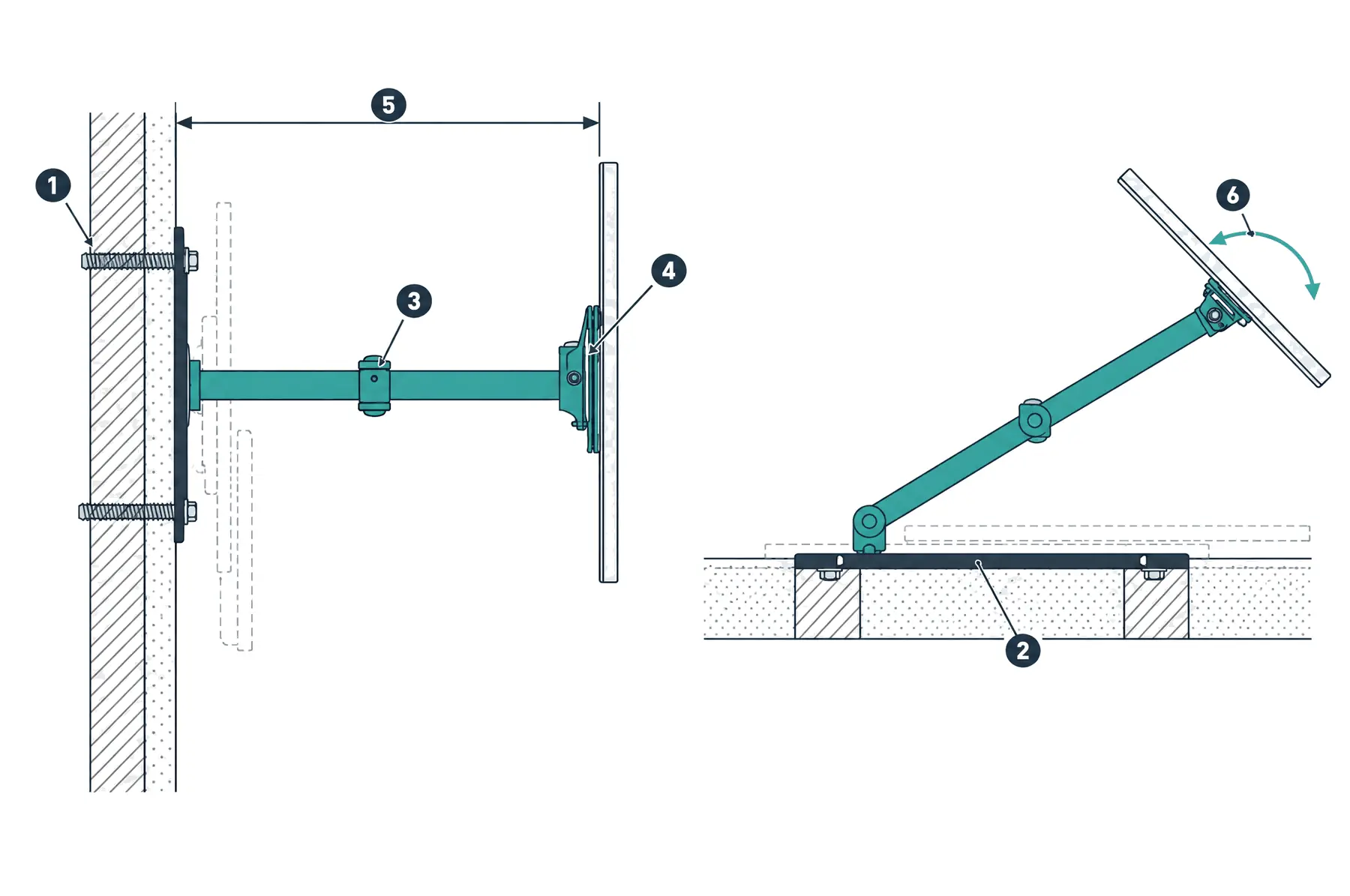

What the numbers show
- Lag bolts into the stud The wall plate is fixed with lag bolts driven into the centre of the wood studs. An extended arm multiplies the load the TV puts on the wall, so this mount is never held by drywall alone.
- Wall plate across two studs On wider arms the plate spans two studs (usually 16 inches apart), so the twisting force of the extended arm is shared between them.
- Middle pivot The knuckle between the two arm segments lets the arm fold flat or open out; each joint turns on a vertical pin.
- Tilt head The head at the TV adds a few degrees of tilt and lets the screen be levelled after it is hung.
- Reach from the wall How far the screen comes off the wall when fully extended. The arm's listed reach and weight rating are checked against the TV before it is bought.
- Swivel Pulled out, the screen turns toward a kitchen island or a corner seat; pushed back, it folds close to the wall.
Anchoring an arm on steel studs
In condos framed with steel, a full-motion arm goes onto a wood backer — a 2x6 or plywood strip fastened across two steel studs with rated fasteners — and the arm's wall plate bolts into the backer. The backer can be painted to the wall or hidden behind the TV.
Cables that move with the arm
Cables get a service loop behind the wall plate and run in the arm's cable channels so extending and swiveling never pulls on the HDMI or power connections. The full range of motion is tested before the installer leaves, checking for pinch points and for the screen touching the wall or a window frame.
A full-motion mount turns one wall into three viewing angles.
Full-Motion & Corner TV Mounts — common questions
How much does a full-motion mount add in Irvine?
About $35–$60 on top of the base mounting range in 2026, plus the steel-stud or backer work where needed.
Can a 75-inch TV go on a full-motion arm?
Yes, on a dual-arm mount rated well above the TV's weight and anchored across two studs or a backer.
